280m/min Leadjet Inkjet Printer 1-3 Lines 20mm Total Font Height
ISO Approved

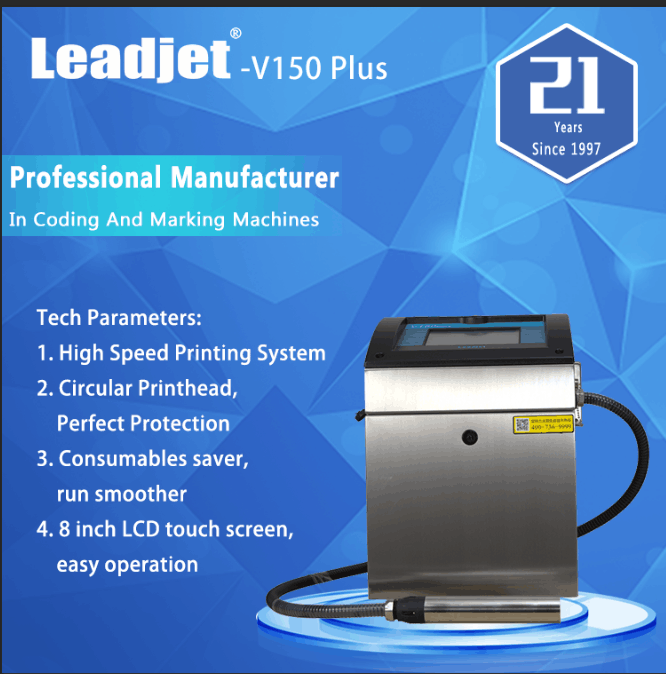

The Leadjet V150PLUS printer is specially designed based on the
basic coding requirements of medium and low speed printing within
two lines. It is a complete and reliable coding system.
The compact stainless steel housing makes it easy to install on any
production line. Provides a convenient way to perform daily
operations in a typical work environment. Print quality has
improved significantly. Reliable start-up mode, V series inkjet
printer with automatic print head cleaning function. Practice has
proved that it does not need to manually clean the print head like
a general printer, which is more suitable for the start of various
production lines. Easy to use, the new user interface maximizes
uptime by quickly entering information and creating and storing
information during the printing process.
Speicfication
| CIJ Inkjet Printer | V150PLUS |
| Max Print Speed | 280m/min (5*7 dots) |
| Printable Font Height | 1.5 mm~20mm. Maximum can be widened 9 times |
| Dot Matrix | 24 * 24 dot matrix |
| Memory Capacity | Up to 1000 messages |
| Printing Line | Within 3 Lines |
| Printer Content | Time, Date, Lot No, Serial No. etc. |
| Operate Interface | Chinese,English,Korean and others with graphic editing function |
| Print Material | Metal, plastic, glass, wood, tube, electrical wire, cable etc. |
| Print Distance | Max: 30mm,from printhead bottom to substrate surface |
| Ink Color | Black, blue, red etc |
| Ink Consumption | 70 millions character per litre |
| Power | AC220V /380V 50HZ 100W |
| Printhead Throat Length | 2.7m (Customizable) |
| USB and RS232 Port | With USB port, but no RS232 port |
| Environment Temperature | 5℃-45℃ |
| Humidity | Below 90% |
| Machine Dimension | 387 * 270 * 507mm |
| Package in wooden dimension | 625 * 455 * 730mm |
| NW,/GW. | 30kgs / 40kgs |
| Display and Keyboard | 8-inch full-color high-definition touch screen,and full-touch
virtual keyboard |
Feature
1. Quick-dry ink used industrial non-contact small character inkjet
printers
2. Improved stability, easier maintenance
3. Intelligent ink system
4. User friendly interface and most reliable ink system
5. Easy operate and can trouble free run long time
6. USB Port for logo and other complicated printing contents
7. Economic and can satisfy most printing requirements
FAQ:
Q: Are you a factory or a trading company?
A: Factory. Founded in 1997, now in Wuhan CN. Authorized to engage
in import-export business. Welcome to visit our factory!
Q: I’m wondering if your machine can print on my product.
A: Please show me your product and characters by email or express,
then we will film the process of printing and then send you the
video and printing samples. All the freight cost shall be borne by
the buyer.
Q: I have never operated inkjet printer before, is it hard?
A:We will provide English Service Manual and Unpacking together
with the printer. It is easy to use.
Q: How do I do if the machine goes wrong?
A:First,please film a video to demonstrate the problem. Our
professional after-sales engineer will test according to the
problem and provide you with solutions.
Second, as for non-artificial damaged part, the spare part is free
within the warranty period. The freight cost of spare part shall be
borne by buyer.
